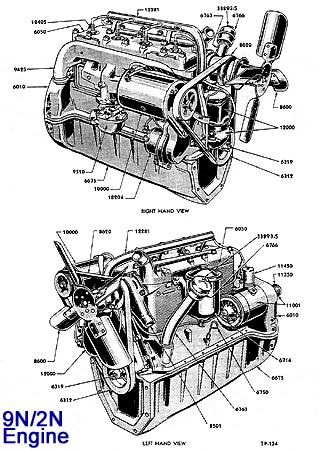

| Engine |
|
- Four cylinder L-head. 3.187 inch bore x 3.75 inch stroke.
- Piston displacement- 119.7 cu. in.
- Compression ratio- 6 to 1.
|

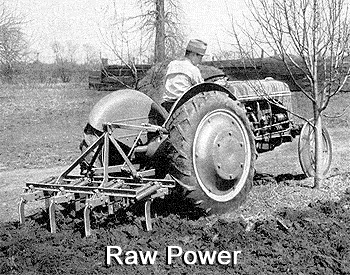

| Horsepower |
 |
- Maximum horsepower at belt pulley- 23.87.
- Rated belt horsepower (85% of maximum) 20.29.
|
| Drawbar |
|
- 2-14" plow capacity with Ferguson hydraulically operated
implements.
- Maximum drawbar without Ferguson hydraulic system of control-
16.90 horsepower.
- Rated drawbar horsepower (75% of maximum) 12.68.
- Adjustable type. Included as standard equipment.
|

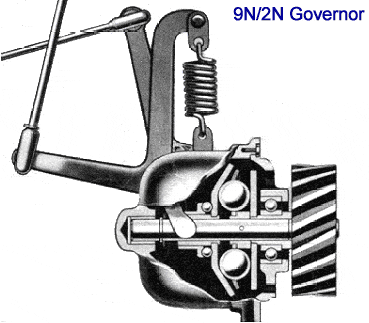

| Governor |
|
- Variable speed, mechanically operated, centrifugal type.
- Governor regulation from 800 to 2200 rpm.
|
| Lubrication |
|
- By gear pump supplying direct pressure oiling to crankshaft,
camshaft and connecting rod bearing, also to timing gears.
- Crankcase oil capacity- 6 quarts of 10w-30 HD that meets
the API Service Classifications.
|
| Oil Filter |
|
- Replaceable cartridge type of large capacity.
|

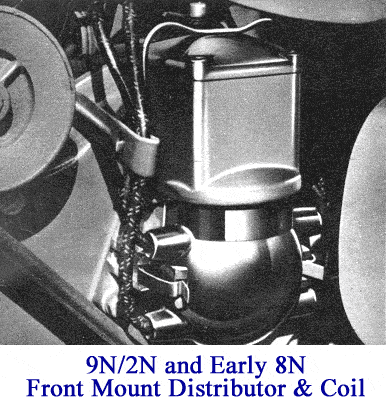

| Ignition |
|
- Front-mounted direct driven distributor in unit with coil
in waterproof housing.
- Fully automatic spark advance.
- Static timing is TDC.
- Contact point gap- .015.
- Firing order is 1-2-4-3.
- Champion H10 or H12 spark plugs with .026 gap.
|
| Generator |
|
- 6-volt type with third brush control.
|
| Starter |
|
- 6-volt conventional type automobile starter. Mounted on left
side.
- Safety starter switch mechanically interlocked with gear shift
lever.
- Shifter must be in neutral to start.
|
| Battery |
|
- 6-volt battery w/positive ground. 85 ampere-hour capacity-
13 high plates.
|

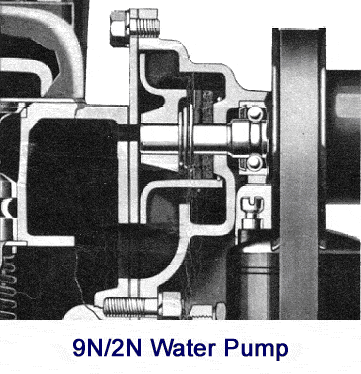

| Cooling |
|
- Pump circulation of water through copper tube and fin type
radiator.
- Fan- 4-blade push-type 16" driven by belt. (Optional 4-
blade pull-type and 6- blade push-type)
- Pump is packless type with pre-lubricated bearings.
- Cooling system capacity- 14 U.S. quarts.
|
| Fuel Supply |
|
- Welded steel tank carried in engine hood.
- Capacity- 9 gallons plus 1 gallon reserve. Two turns open on
fuel valve for standard and full open for reserve operation.

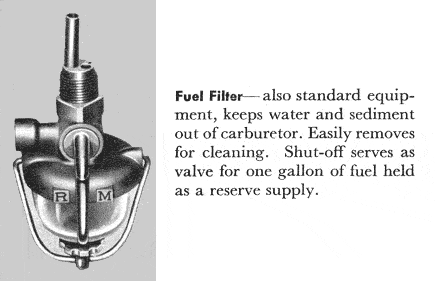

- Fuel filter is standard equipment.
|
| Carburetor |
|
- Marvel-Schebler TSX33 up draft, plain tube type of sturdy,
dustproof construction.
|
| Air Cleaner |
|
- Oil Bath type with dust receptacle easily removable for cleaning.
|
| Muffler |
|
- Reverse-flow type. Fitted as standard equipment to carry exhaust
to the rear of the tractor.
|

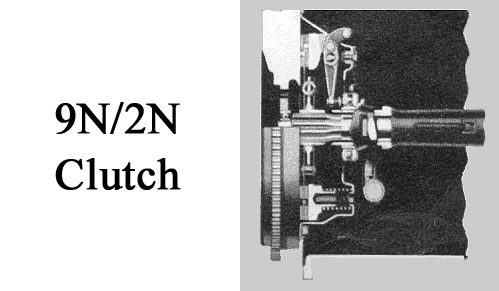

| Clutch |
|
- Single dry plate 9" effective diameter. Clutch plate pressure
increased by centrifugal force as engine speed is increased.
|
| Transmission |
|
- Sliding gear- 3 forward speeds and one reverse.
- All shafts mounted on tapered roller bearings.
- Capacity for transmission, hydraulic mechanism and differential
is 5 gallons.
- Transmission
Speeds
|

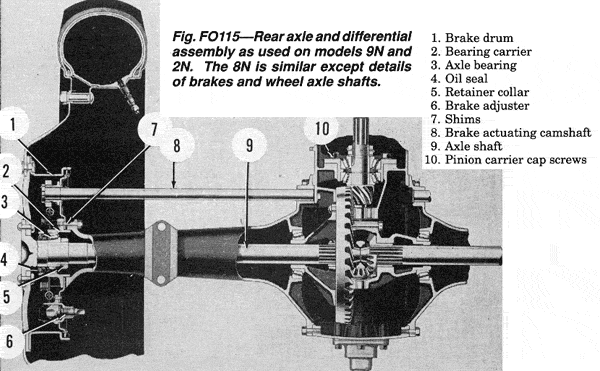

| Final Drive |
|
- Spiral bevel gear drive with straddle-mounted pinion 6.66 to
1 ratio.
- Four pinion differential mounted on tapered roller bearings.
- Drive axle of the semi-floating type with integral axle shafts
and wheel hubs, also mounted on tapered roller bearings.
- Final
Gear Reductions
|

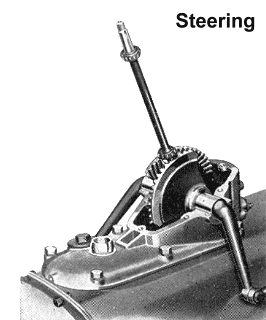

| Steering |
|
- Beveled pinion and twin bevel sectors controlling both front
wheels independently.
- Tread of front axle adjustable without disturbing any steering
connections.
- Rubber covered steel steering wheel 18" diameter.
|
PTO
(Power Take Off) |
|
- Shaft extends from rear of axle housing.
- Has standard 1-1/8" spline end for fitting to drives of
power driven equipment.
- 509 rpm of engine speed of 1400 rpm.
- 545 rpm of engine speed of 1500 rpm.
- PTO control lever is located on left side of tractor near drivers
foot.
|

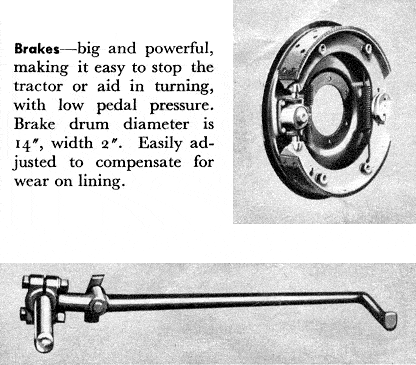

| Brakes |
|
- 14" x 2" internal expanding, two shoes, fully energizing
type.
- One simple accessible adjustment on each brake.
- Brakes operate independently on each rear wheel controlled by
separate pedals to facilitate short turning.
|
| Wheels |
|
- Front- Steel disc fitted with 4 x 19 single rib tires on drop
center rim, tire pressure- 26 lbs.
- Rear- Steel disc fitted with 8 x 32 traction tread tires on
drop center rim, tire pressure- 12 lbs.
|

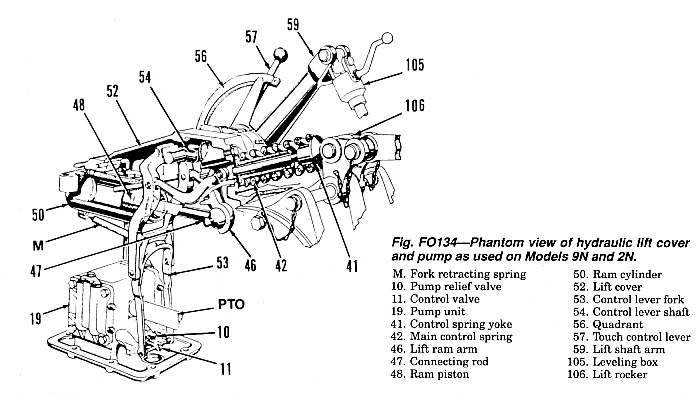

| Hydraulics |
|
- Consists of 4 cylinder pump supplying oil under suitable pressure
to ram cylinder.
- Valve has manual and automatic control.
- Control lever convenient to the operator's right hand gives
him instant control of the implement.
- Capacity for transmission, hydraulic mechanism and differential
is 5 gallons.
|
| Dimensions |
|

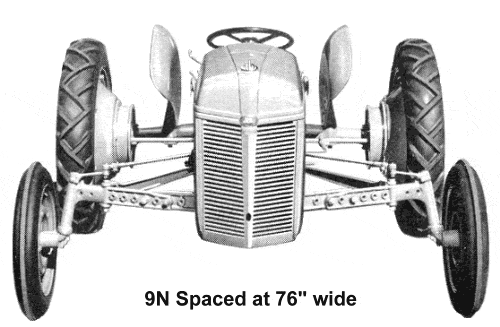

- Wheelbase- 70".
- Normal Tread- Front and rear- 48".
- Front Tread- Adjustable, by means of extending axles ends and
reversing front wheel discs, to 76" in 4" steps.
- Rear Tread- Adjustable, by means of reversible wheel disc and
reversible tire rims, to 76" in 4" steps.
- Overall length- Front tire fin to end of lower link- 115".
- Overall width- 64".
- Overall height- 52".
- Ground clearance- 13" under center. 21" under axles.
- Turning circle- 16 ft. diameter with use of brakes.
- Shipping weight-approximately 2,140 lbs.
|
| Color |
|
- Battleship Gray (the whole dang thing!)
|
